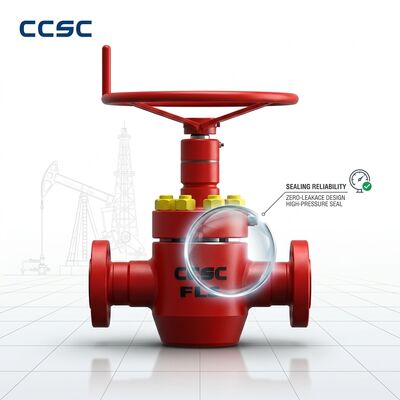

As Per ASME B16 10 Facetofacedimension High Pressure Gate Valve Class 1500 Pressure Rating Psl 3 Heavy Duty Valve For Industrial

Product Description:

The High Pressure Gate Valve is an essential component designed for controlling the flow of liquids and gases in demanding industrial applications. Engineered to meet rigorous standards and provide reliable performance under extreme conditions, this Gate Valve is ideal for use in oil and gas, petrochemical, power generation, and other heavy-duty industries where high pressure and temperature resistance are critical.

Manufactured in accordance with the globally recognized API 600 and ASME B16.34 standards, the High Pressure Gate Valve guarantees exceptional quality, durability, and safety. These standards ensure that the valve construction, materials, dimensions, and testing procedures comply with stringent industry requirements, providing confidence in its long-term operational integrity. Furthermore, the valve undergoes rigorous testing in line with API 598, ensuring that every unit delivers leak-tight performance and meets the highest levels of reliability.

This High Pressure Gate Valve features a pressure service level (PSL) of 3, signifying its suitability for high-pressure applications where enhanced safety and performance are mandatory. The valve is designed to handle a wide temperature range from -29°C to 425°C, making it versatile for use in various environments, including cryogenic conditions and elevated temperature applications. This broad temperature tolerance ensures that the valve maintains its sealing efficiency and structural integrity across fluctuating operational conditions.

With a nominal size of 2 1/16", the High Pressure Gate Valve is perfectly sized for precise flow regulation and shutoff in pipelines requiring compact yet robust valve solutions. The gate valve design utilizes a wedge-shaped gate that moves perpendicular to the flow path, providing a tight seal when closed and minimal pressure drop when fully open. This design is especially effective in applications where full bore flow is desired, allowing for easy pigging and minimal turbulence.

The construction of the High Pressure Gate Valve incorporates high-quality materials selected to withstand corrosive and abrasive media, as well as mechanical stresses imposed by high pressure and temperature fluctuations. The valve body and bonnet are typically forged or cast from alloy steels, ensuring mechanical strength and resistance to wear. The sealing surfaces are precision-machined and treated to enhance durability and prevent leakage, even after prolonged usage.

Maintenance and operational ease are key considerations in the design of this Gate Valve. The valve is equipped with a robust bonnet assembly and packing system that facilitates easy access and replacement, minimizing downtime during servicing. Additionally, the valve stem is designed for smooth operation, reducing the torque required to open or close the valve, which is particularly beneficial in high-pressure scenarios.

In summary, the High Pressure Gate Valve is a highly reliable and efficient solution for controlling fluid flow in high-pressure and high-temperature industrial environments. Its compliance with API 600, ASME B16.34 standards, and API 598 testing ensures superior quality and performance. The valve’s PSL 3 rating, broad temperature range from -29°C to 425°C, and 2 1/16" size make it a versatile and indispensable component in critical pipeline systems. Whether used for isolation or modulation, this Gate Valve offers excellent sealing, durability, and ease of maintenance, making it a preferred choice for engineers and operators seeking dependable high-pressure valve solutions.

Features:

• Product Name: High Pressure Gate Valve
• Operation Type: Manual / Gear Operated
• Working Temperature Range: 75°F - 350°F
• Test Standard: API 598
• Compliance with Standards: API 600, ASME B16.34
• Size: 2 1/16"
• Designed for high-pressure applications ensuring reliable performance
• Durable Gate Valve construction for long-lasting service
• Suitable for various industrial uses requiring precise flow control

Technical Parameters:

Applications:

The High Pressure Gate Valve is an essential component widely used in various industrial applications where reliable flow control is critical. Designed with a Pressure Service Level (PSL) of 3, this valve ensures maximum safety and performance under demanding conditions. Constructed from high-quality stainless steel, the High Pressure Gate Valve offers excellent resistance to corrosion and wear, making it suitable for harsh environments and long-term use.

The compact size of 2 1/16" allows the High Pressure Gate Valve to be installed in systems with limited space while maintaining optimal flow control capabilities. Its operation type can be either manual or gear operated, providing flexibility depending on the specific requirements of the application. Manual operation is ideal for straightforward control scenarios, while gear operation facilitates easier handling in high-pressure or hard-to-reach installations, ensuring smooth and precise valve actuation.

The High Pressure Gate Valve is suitable for use within a working temperature range of 75°F to 350°F, making it adaptable for handling various fluids and gases under moderate to high-temperature conditions. This temperature range covers many industrial processes, including water treatment, chemical processing, and oil and gas applications, where the durability and reliability of the valve are paramount.

Common application occasions for the High Pressure Gate Valve include pipeline systems requiring tight shutoff capabilities, such as in refineries, petrochemical plants, and power generation stations. The valve’s robust stainless steel construction and high PSL rating make it particularly valuable in environments where safety and operational integrity cannot be compromised.

In addition, the High Pressure Gate Valve is frequently used in scenarios involving high-pressure steam lines, cooling water systems, and hydraulic control networks. Its ability to maintain a secure seal and withstand pressure fluctuations ensures smooth operation and minimizes the risk of leaks or system failures.

Overall, the High Pressure Gate Valve is a versatile and reliable solution for industries that demand precise control of fluid flow under high-pressure conditions. Whether manually operated or gear-assisted, this gate valve offers durability, efficiency, and safety, making it an indispensable component in numerous industrial setups.

Customization:

Our High Pressure Gate Valve product offers versatile operation types to suit your needs, including Manual and Gear Operated options. Designed and manufactured in compliance with industry standards such as API 600 and ASME B16.34, this High Pressure Gate Valve ensures reliable performance under demanding conditions.

The Gate Valve features a durable PTFE seal material, providing excellent sealing capabilities and resistance to wear. It is engineered to operate efficiently within a working temperature range of 75°F to 350°F (approximately -29°C to 425°C), making it suitable for various high-temperature applications.

Whether you require a High Pressure Gate Valve for industrial, commercial, or specialized applications, our product customization services allow you to tailor the valve specifications to meet your exact requirements, ensuring optimal functionality and longevity.

Support and Services:

Our High Pressure Gate Valve product is designed for reliable performance in demanding industrial applications. To ensure optimal operation and longevity, we provide comprehensive technical support and services.

Technical Support:

Our team of experienced engineers is available to assist with installation guidance, troubleshooting, maintenance recommendations, and performance optimization. We offer detailed product documentation, including operation manuals, maintenance guides, and technical datasheets to help you understand and utilize the valve effectively.

Services:

We provide on-site inspection and maintenance services to ensure your High Pressure Gate Valve operates at peak efficiency. Our service offerings include valve testing, repair, refurbishment, and spare parts supply. Customized training sessions are also available to equip your personnel with the necessary skills to maintain and operate the valve safely and efficiently.

By choosing our High Pressure Gate Valve and support services, you gain a reliable partner committed to maximizing the performance and service life of your equipment.

FAQ:

Q1: What pressure ratings are supported by the High Pressure Gate Valve?

A1: The High Pressure Gate Valve is designed to withstand pressures up to 6000 psi, making it suitable for demanding industrial applications.

Q2: What materials are used in the construction of the High Pressure Gate Valve?

A2: The valve body is typically made from stainless steel or carbon steel, while the gate and sealing components are crafted from durable, corrosion-resistant alloys to ensure long-lasting performance.

Q3: What sizes are available for the High Pressure Gate Valve?

A3: This valve is available in sizes ranging from 1/2 inch to 12 inches, allowing flexibility for various pipeline requirements.

Q4: Is the High Pressure Gate Valve suitable for both liquid and gas applications?

A4: Yes, the valve is designed for reliable operation in both liquid and gas systems, providing tight shutoff and minimal leakage.

Q5: How is the High Pressure Gate Valve operated?

A5: The valve is typically operated manually via a handwheel, but it can also be fitted with electric or pneumatic actuators for automated control.
